Network Details

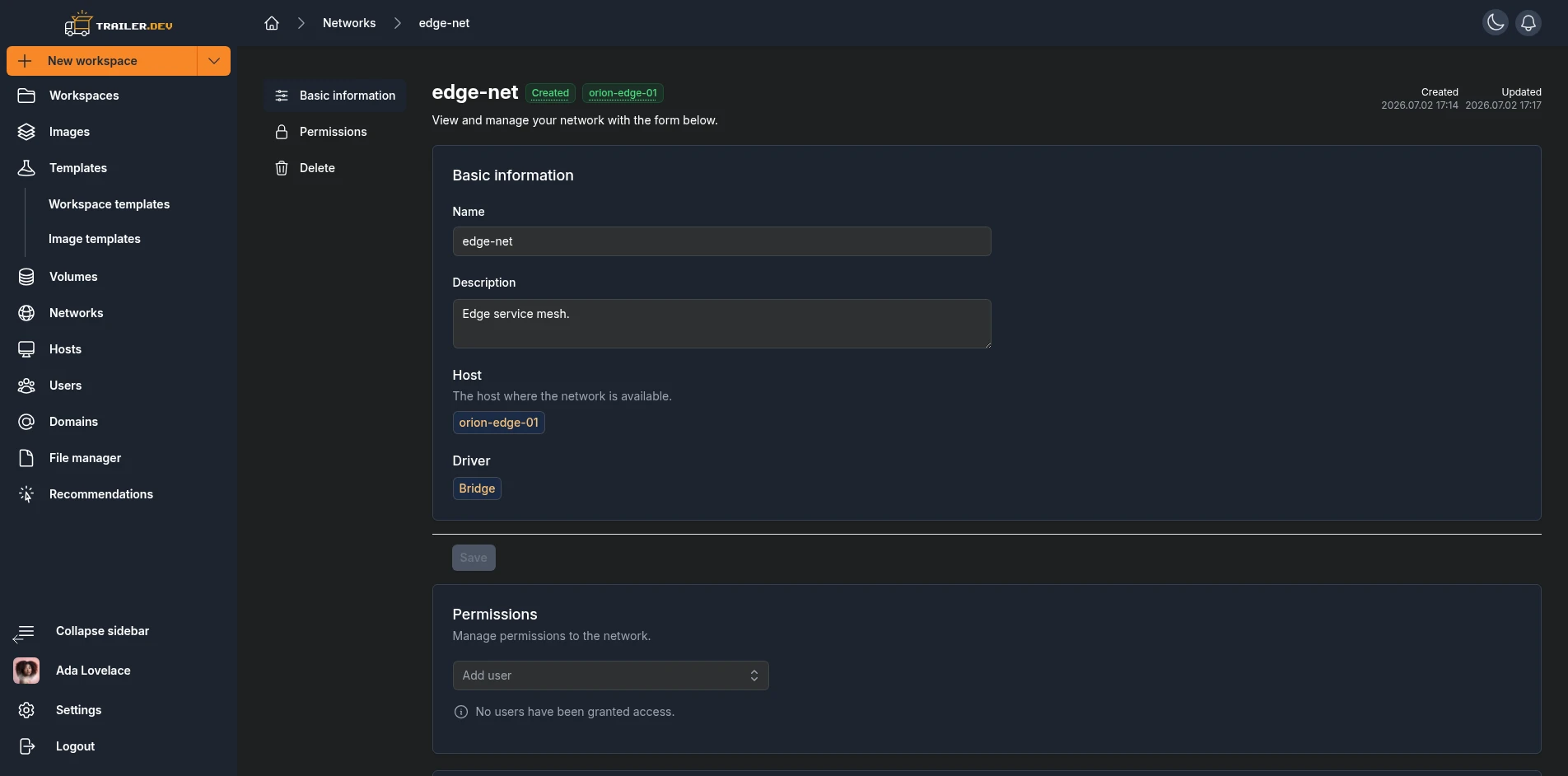

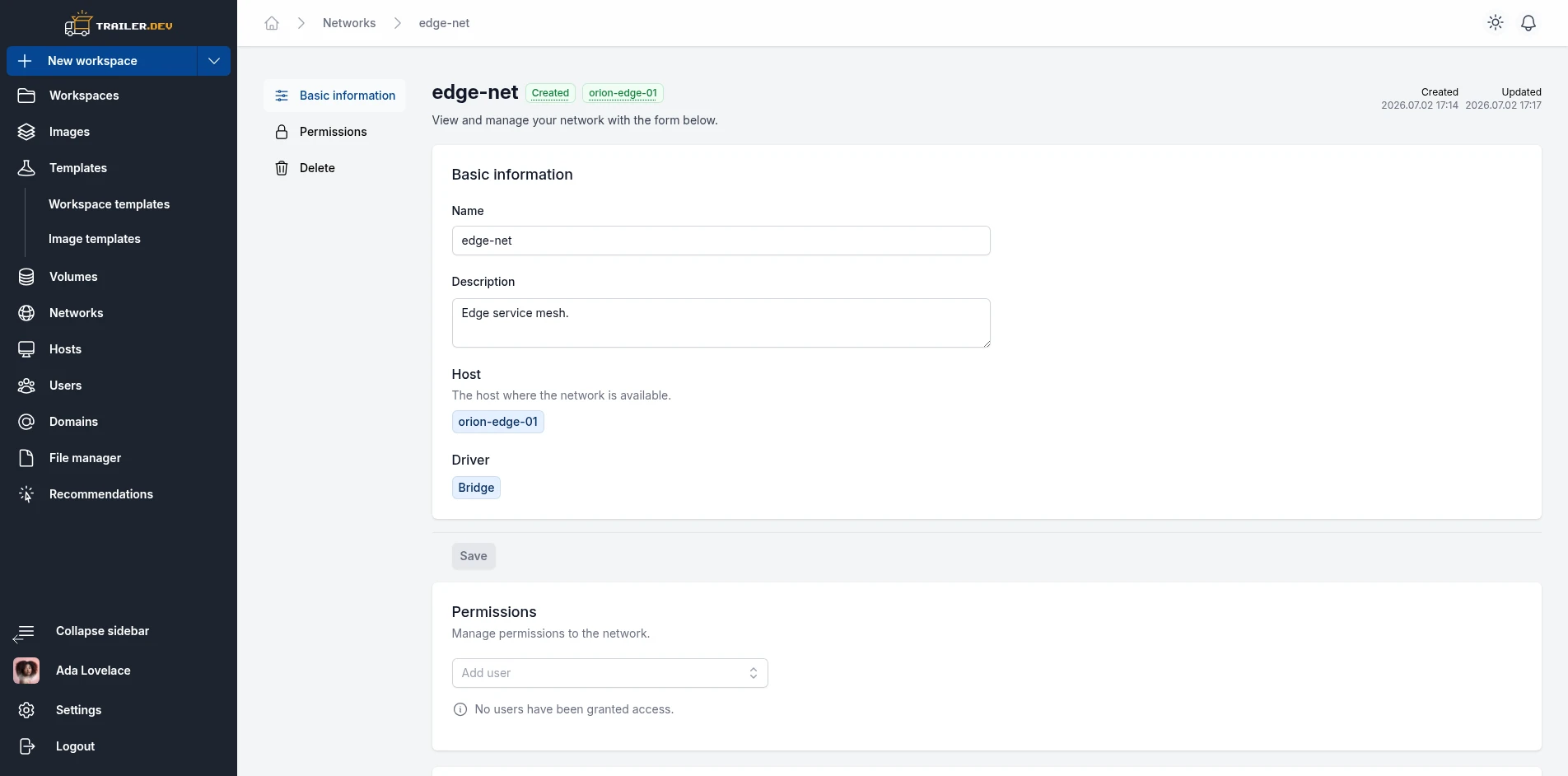

The Network Details page with the basic information form, permissions panel and delete section.

View and manage a single network. The header shows the network name and a live status indicator that updates as the agent reconciles the network. If the network has a reconciliation message, a Messages section appears at the top.

Basic information

Editable fields:

• Name
• Description

Read-only fields:

• Host: shown as a link to the host.
• Driver: Bridge or Macvlan.
• For macvlan networks: Parent interface, Subnet, Gateway, and IP range (shown only when set).

Saving is enabled once a field changes.

Permissions

Manage who can access the network. Each user row carries three flags:

• Attach: attach the network to a workspace.
• Modify: edit the network.
• Delete: remove the network.

See Permissions and access control for the full model.

Delete

Delete the network from a confirmation form. You must type the network name to confirm. The section is shown only when you hold delete permission.

A network cannot be deleted while it is attached to a workspace. The server rejects the request with a conflict. Detach the network from every workspace that uses it first, then delete it.
